PTU 400
KEY ADVANTAGES
360degrees horizontal rotation
-120º ~ 90º Azimuth
4 Axis Stabilizer
GPS & IMU Incorporated
Speed Resistance up to 500 km/h
Operable up to 7000 m
-40ºC ~ 60ºC Working Temperature
MAN MACHINE INTERFACE
15" LCD Screen
12" Touch Screen
Live Data
Lock Target & Auto Tracking
Joystick Gimbal Control
HD-SDL & PAL Video Output
500 GB Storage

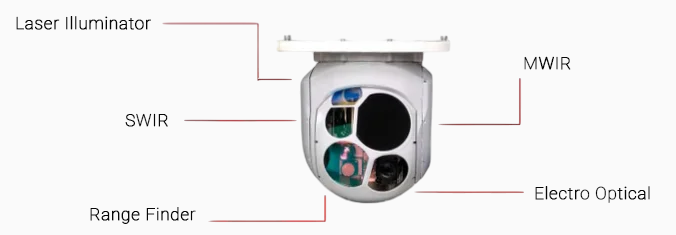

IR SENSOR
Colour
Multi Colour Palette for Display
Operation
Day and Night
FPA
640 x 512
Display Resolution
720p
Zoom
0.9 ～ 1.7 μm Wavelength
SWIR
3 ～ 5 μm Wavelength
LASER RANGE FINDER
Perform laser ranging allows you to retrieve rich data from a wide different targets such humans, vehicles, ships, war-craft, helicopters and so on. It is integrated with a navigation Map and is able to have a real time target data display distance
ELECTRO OPTIMAL CAMERA
CMOS Sensor
1080p
Display Resolution
0.4 ～ 0.75 μm Wavelength
Horizontal Length
1.5º ～ 63.7º x30
Continuous Zoom Visibility
Up to 30 Km
APPLICATIONS
Antonov AN-12BK
Aircraft
